Schneider Electric XD2PA247

Schneider Electric XD2PA247 by Square D by Schneider Electric

$
291
22
/ EA / 1 EA
  • Part Number: XD2PA247
  • UPC: 00785901607588
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

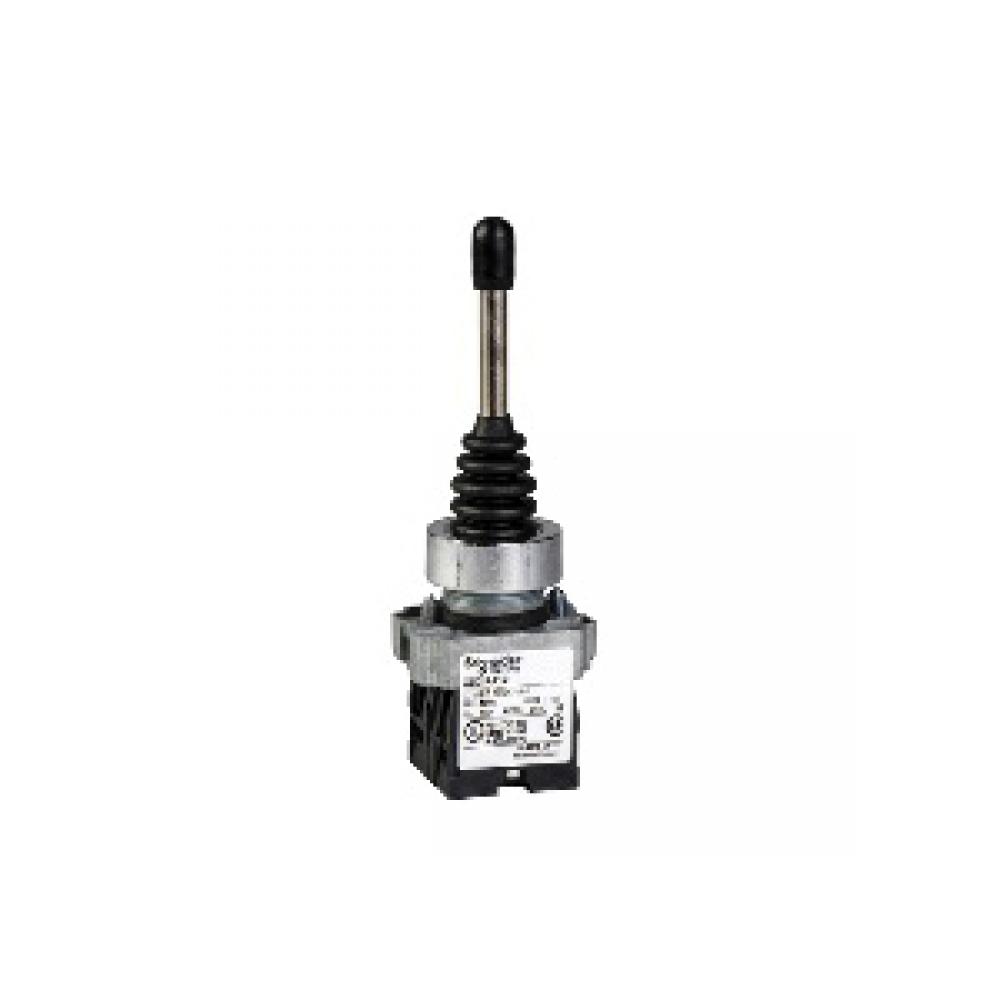

Schneider Electric Harmony™ XD2PA247 Complete Joystick Controller, 600 VAC, 1NO
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Selector Switches
Category Level 3:
Joystick Switches
Bezel/Housing:
Plastic
Category Name:
Joystick Switches
Contact Configuration:
1NO
Country:
USA
Enclosure Type:
NEMA 1/2/3/4/4X/12/13/IP66
Environmental Conditions:
-13 to 158 deg F Operating Ambient Air Temperature, -40 to 158 deg F Storage Temperature
-13 to 158 deg F Operating Ambient Air Temperature/-40 to 158 deg F Storage Temperature
Length:
0.0
Operating Cycles:
1000000
1000000 Cycles
Series:
XD2
Size:
22
22 mm
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|EN/IEC 60947-5-1|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthal
Terminal Type:
Screw Clamp
Type:
Complete
Unspsc:
39122227
Voltage Rating:
600
600 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
