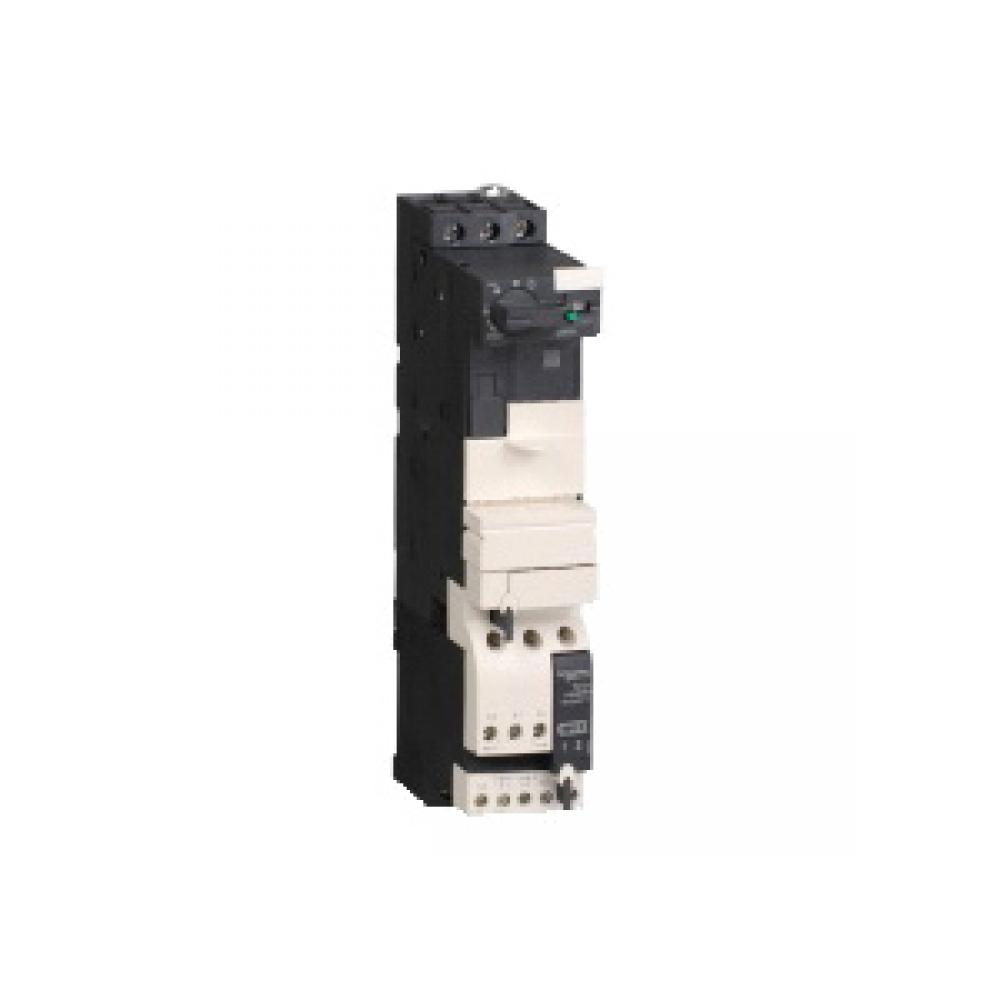

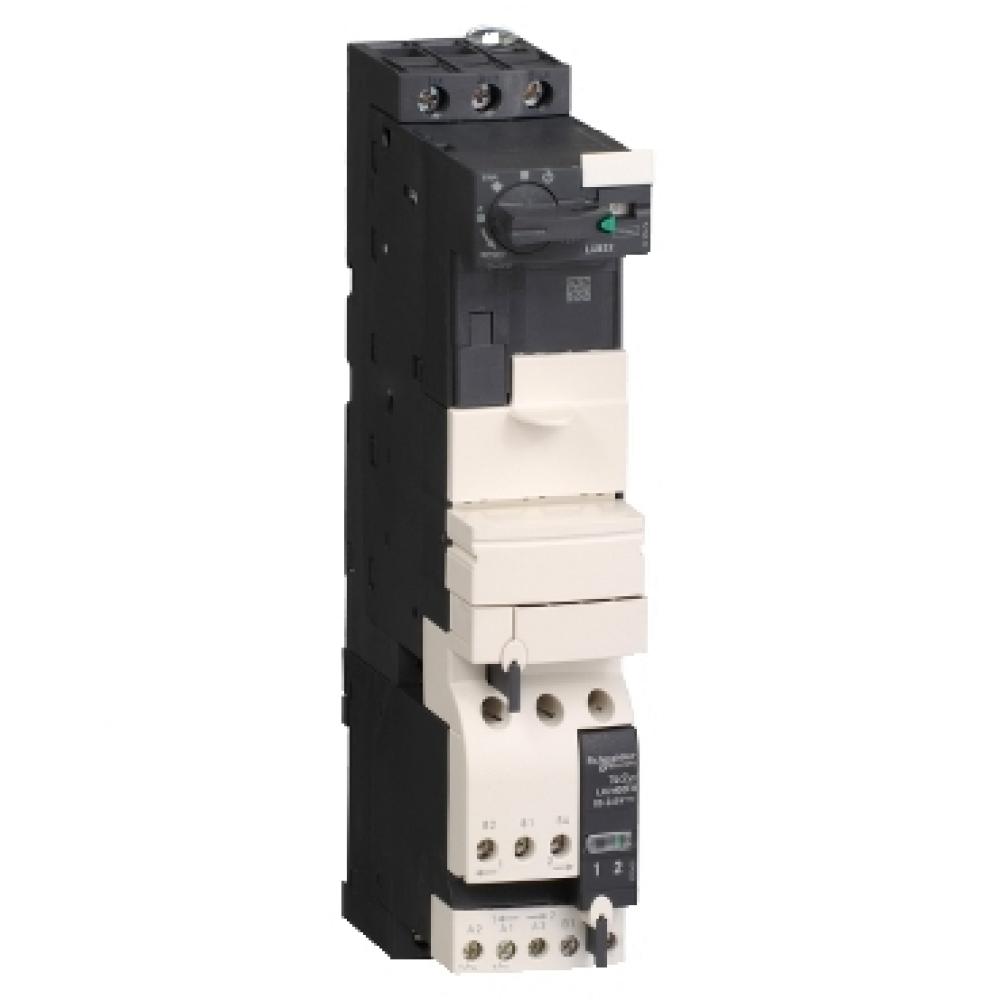

Schneider Electric TeSys™ LU2B32FU Power Base With Signaling Contact and LUCFU Terms, 3 Poles, For Use With Reversing Simple Motor Starter
Details
Category Level 2:
Motor Control Accessories
Dimensions:
1.77 in W x 4.96 in D x 8.82 in H
8.82 in H x 1.77 in W x 4.96 in D
Specifications:
600 VAC, -25 to 70 deg C Operating Temperature, 40 to 60 Hz Operating Cycles, 32 A, 2 hp at 115VAC, 5 hp at 230 VAC 10 hp at 200/230 VAC, 20 hp at 460 VAC, 25 hp at 575/600 VAC
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 No.14|EN 60947-6-2|IEC 60947-6-2|CE Certified|California Provision: WARNING: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known
Suitable For Use With:
Reversing Simple Motor Starter
Manufactured By:
Square D by Schneider Electric
