Schneider Electric 8539SDA53V81FF4T

Schneider Electric 8539SDA53V81FF4T by Square D by Schneider Electric

$
3,869
44
/ EA / 1 EA
  • Part Number: 8539SDA53V81FF4T
  • UPC: 00785901021636
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

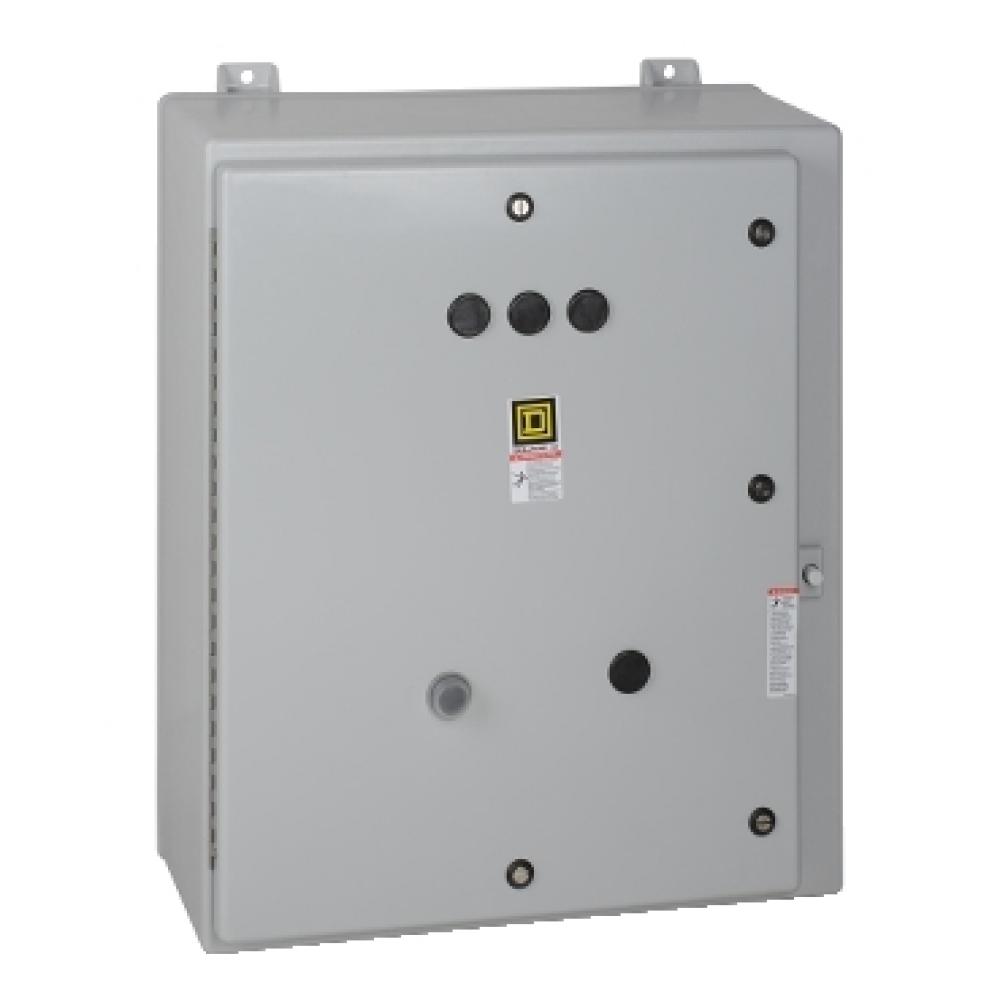

Square D™ 8539SDA53V81FF4T Type S Combination Magnetic Starter With Mag-Gard® Electronic Motor Circuit Protector, 480/120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Action:
Non-Reversing
Amperage Rating:
45 A
Coil Voltage:
480/120 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
10.5 in W x 9.59 in D x 27.75 in H
Enclosure Type:
NEMA 12
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
7.5 to 10 hp at 200 VAC/10 hp at 230 VAC/20 to 25 hp at 460 VAC/25 hp at 575 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8539
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
7.5 kW at 208/240 VAC/18.5 kW at 480/600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
