Schneider Electric 8538SFG15V08

Schneider Electric 8538SFG15V08 by Square D by Schneider Electric

$
6,944
91
/ EA / 1 EA
  • Part Number: 8538SFG15V08
  • UPC: 00785901779025
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

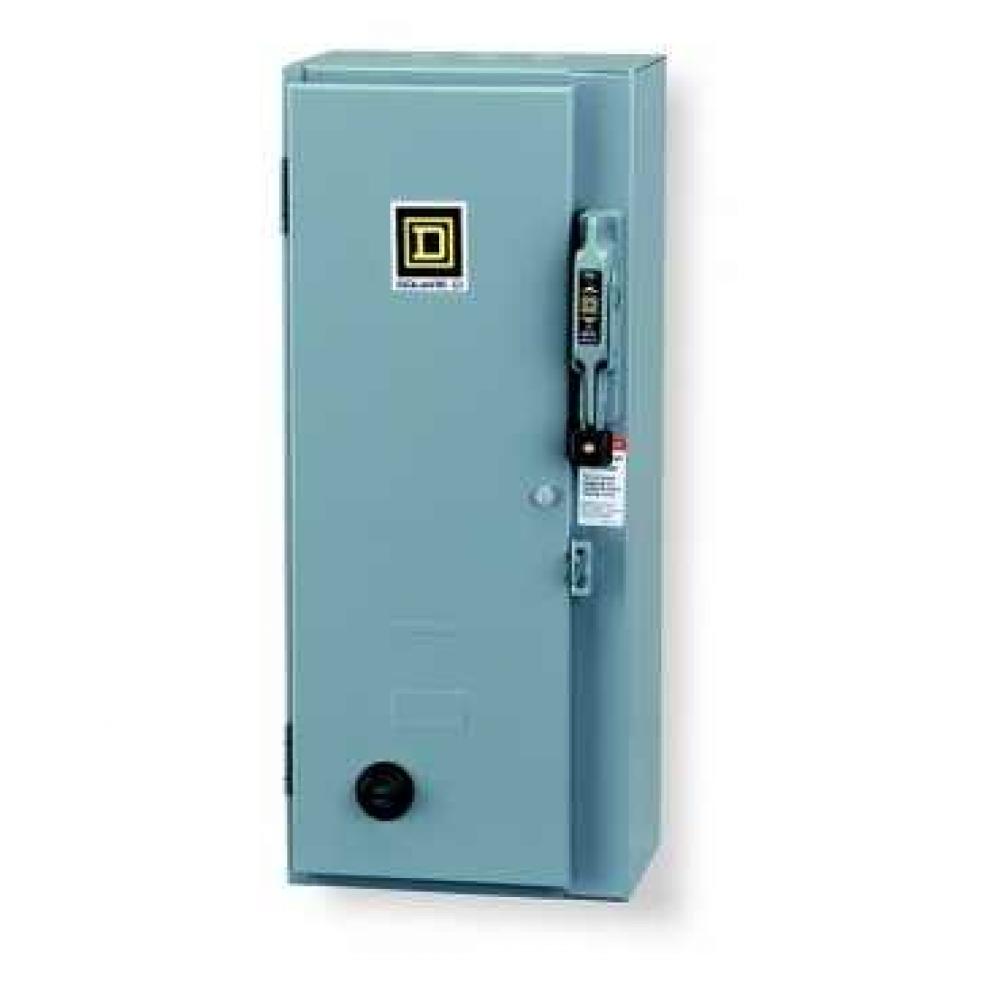

Square D™ 8538SFG15V08 Type S Combination Magnetic Starter With Fusible Disconnect Switch, 208 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 1
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
135 A
Coil Voltage:
208 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
16 in W x 10.53 in D x 52.5 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
40 hp at 200 VAC/50 hp at 230 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8538
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
30 kW at 208 VAC/37 kW at 240 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
