Schneider Electric 8538SCASP4

Schneider Electric 8538SCASP4 by Square D by Schneider Electric

Call for Price
  • Part Number: 8538SCASP4
  • UPC: 00785901169536
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

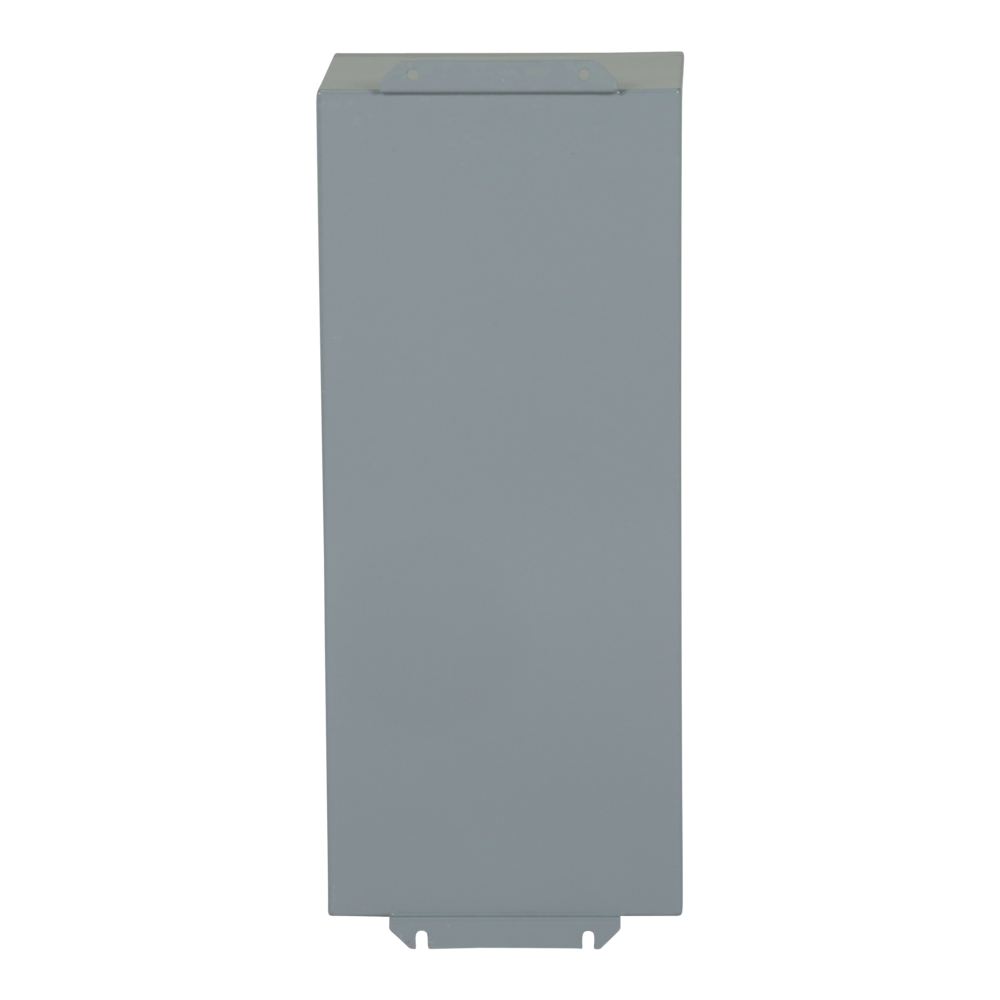

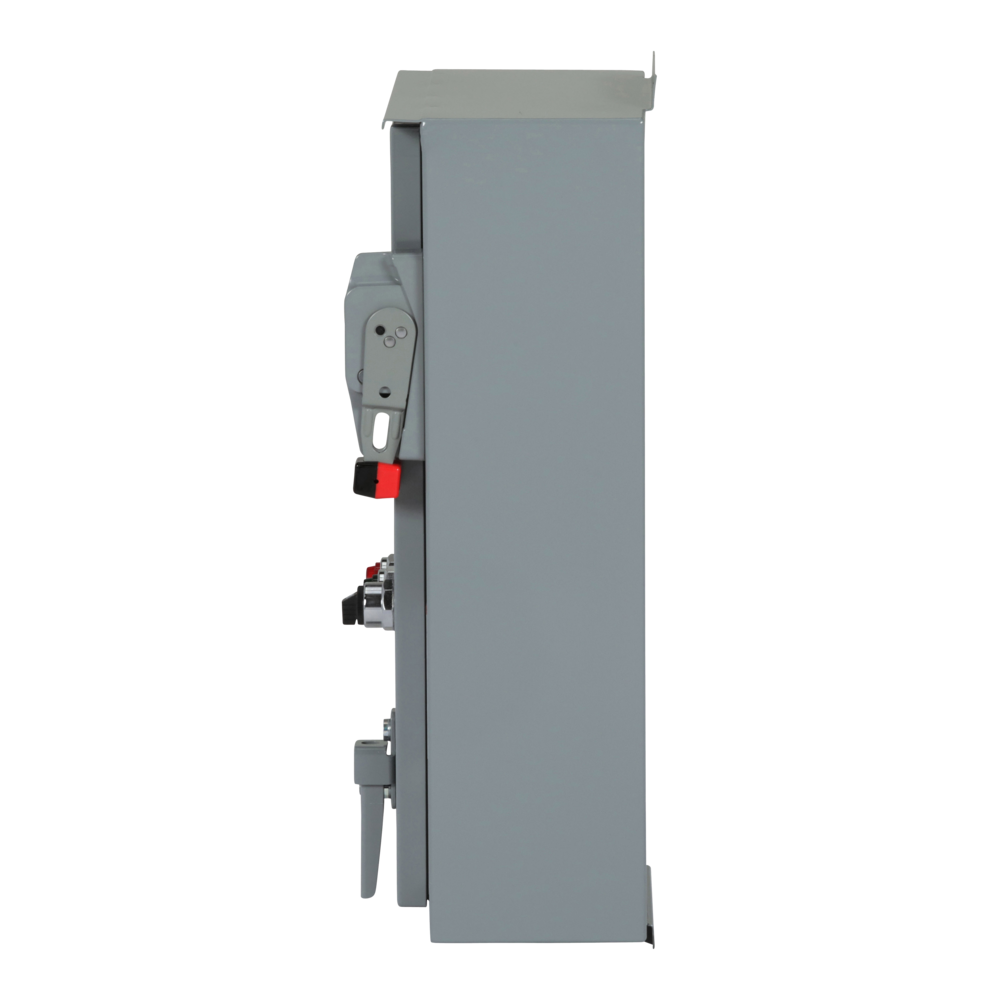

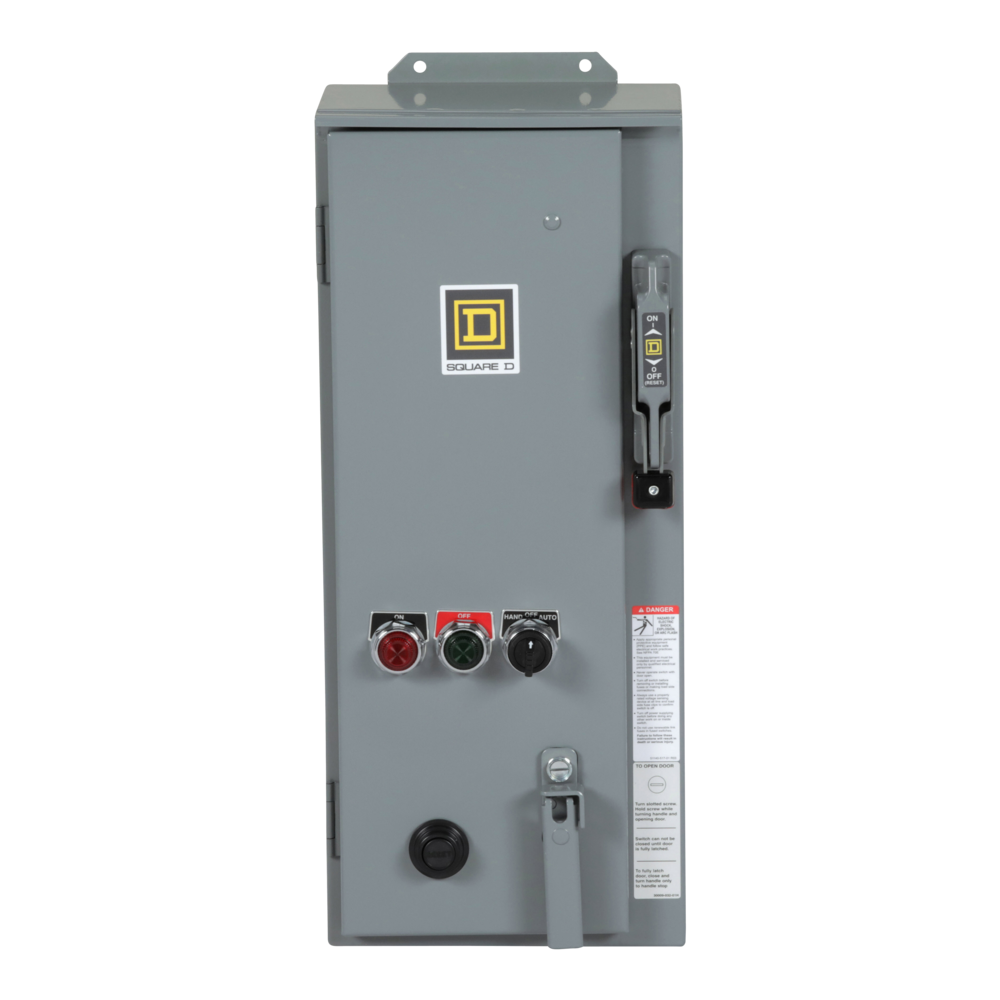

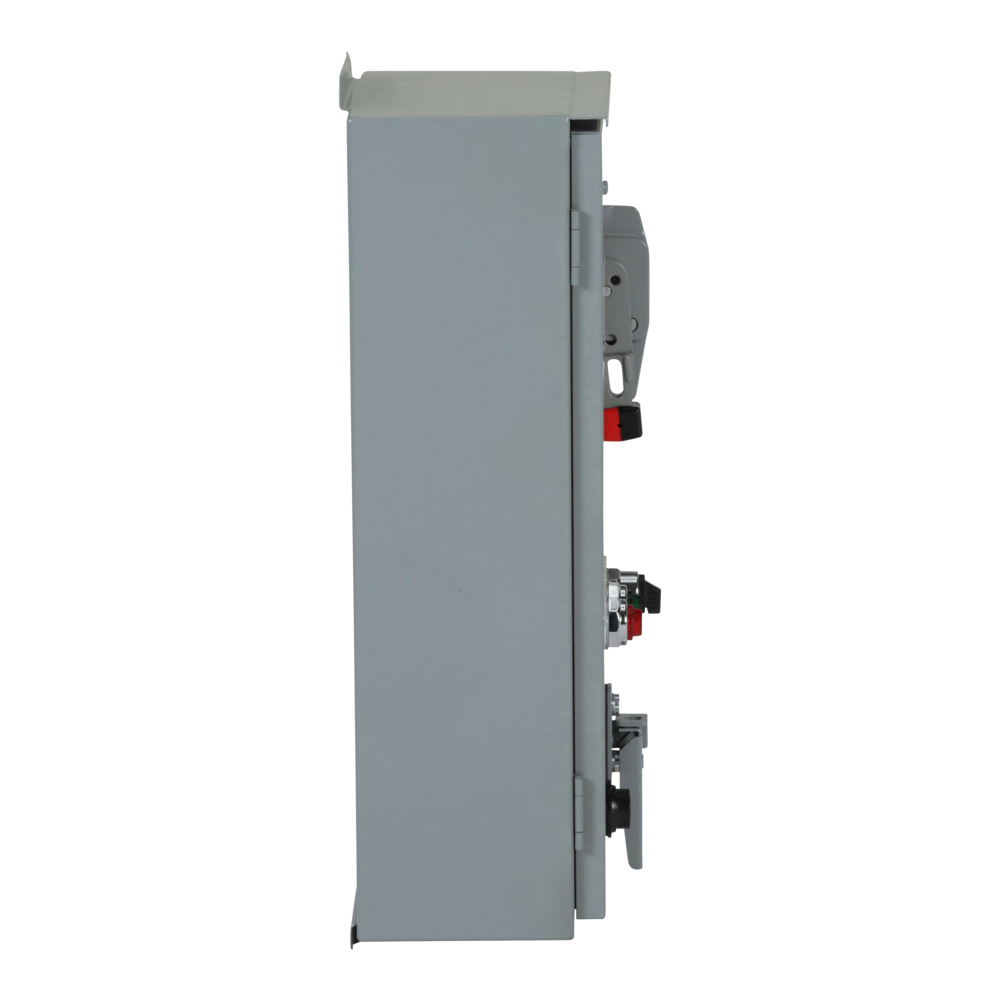

Square D™ 8538SCASP4 Type S Combination Magnetic Starter With Fusible Disconnect Switch, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
27 A
Coil Voltage:
110 VAC at 50 Hz/120 VAC at 60 Hz
Connection Type:
Pressure Wire Lug
Control Type:
HAND/OFF/AUTO Selector Switch
Dimensions:
9.5 in W x 8.34 in D x 24 in H
Enclosure Type:
NEMA 12
Frequency Rating:
50/60 Hz
Full Load Current:
3 to 9 A
Material:
Sheet Steel
Motor Power:
5 hp at 230 VAC/5 hp at 200 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
Motor Logic™ Solid-State
Series:
8538
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
