Schneider Electric 8536SGW11V08

Schneider Electric 8536SGW11V08 by Square D by Schneider Electric

$
15,237
53
/ EA / 1 EA
  • Part Number: 8536SGW11V08
  • UPC: 00785901874874
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

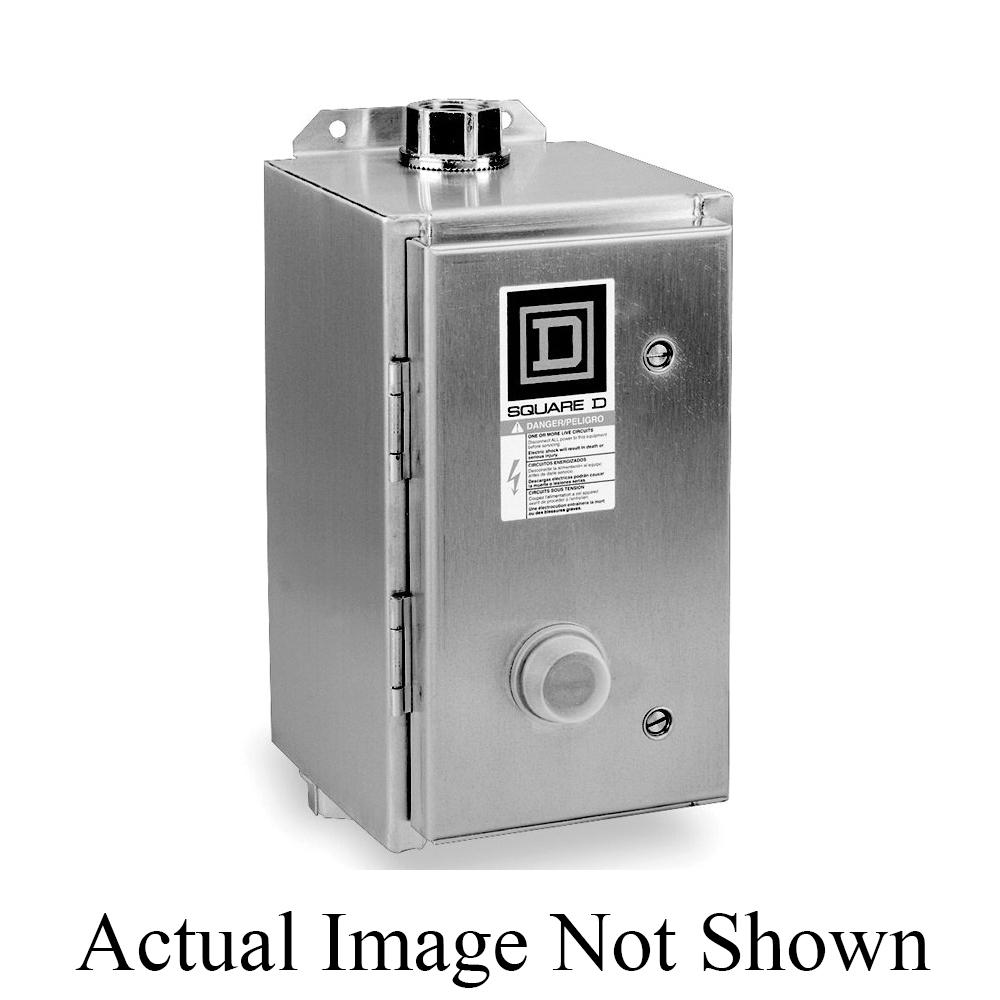

Square D™ 8536SGW11V08 Type S Magnetic Starter, 208 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 4/4X Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Non-Reversing
Amperage Rating:
270 A
Coil Voltage:
208 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
437 mm W x 321 mm D x 437 mm H
Enclosure Type:
NEMA 4/4X
Frequency Rating:
50/60 Hz
Material:
Stainless Steel
Motor Power:
75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
2 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
