Schneider Electric 8536SDT41V08

Schneider Electric 8536SDT41V08 by Square D by Schneider Electric

$
3,690
51
/ EA / 1 EA
  • Part Number: 8536SDT41V08
  • UPC: 00785901227182
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

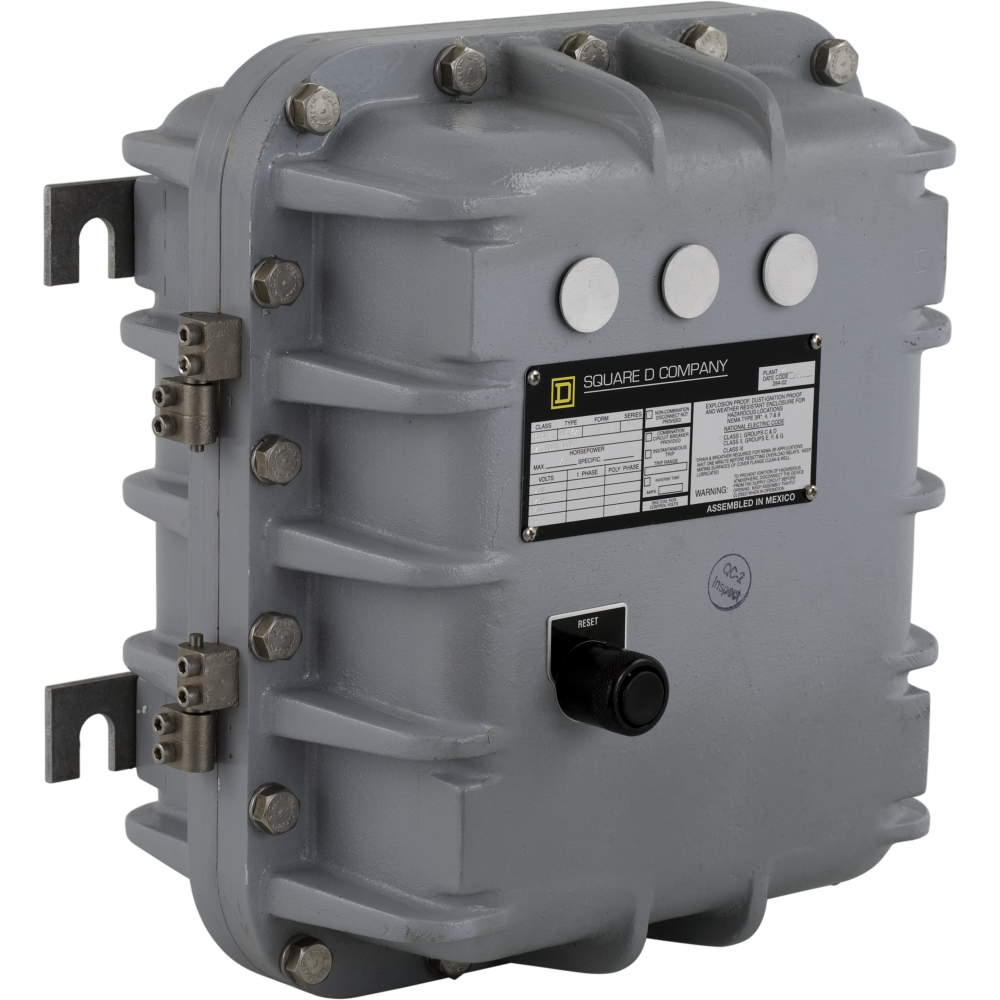

Square D™ 8536SDT41V08 Type S Magnetic Starter, 208 VAC at 60 Hz V Coil, 3 Poles, NEMA 7/9 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Amperage Rating:
45 A
Coil Voltage:
208 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
346 mm W x 326 mm D x 702 mm H
Enclosure Type:
NEMA 7/9
Frequency Rating:
50/60 Hz
Material:
Cast Aluminum
Motor Power:
10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
