Schneider Electric 8536SDA1V81AFF4G11T

Schneider Electric 8536SDA1V81AFF4G11T by Square D by Schneider Electric

$
2,341
37
/ EA / 1 EA
  • Part Number: 8536SDA1V81AFF4G11T
  • UPC: 00785901971917
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

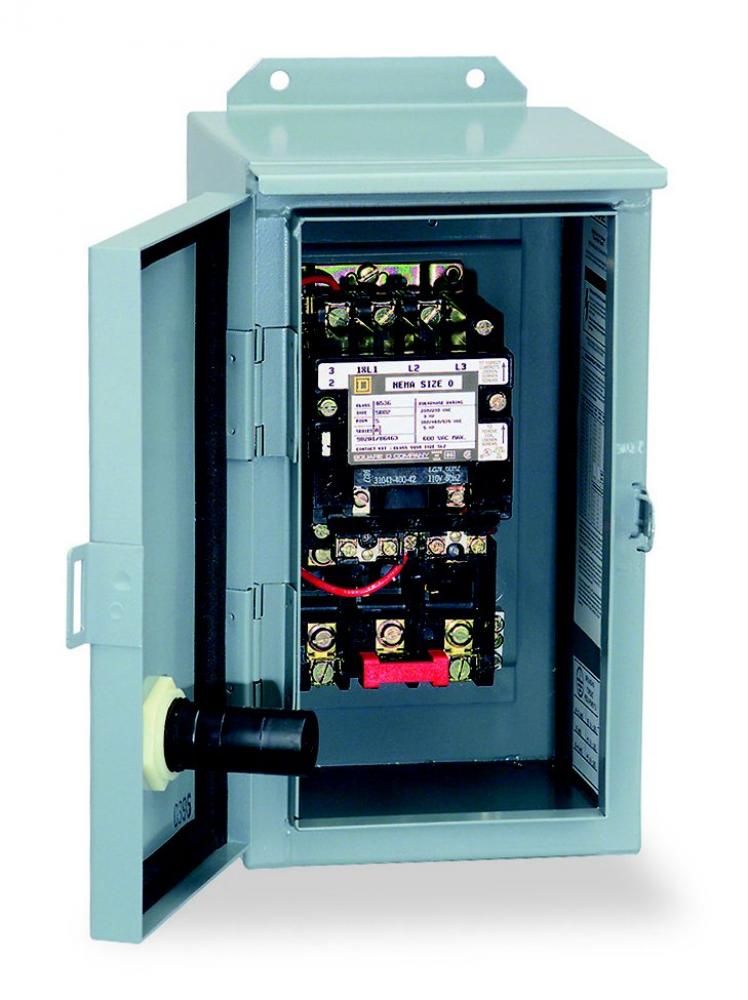

Square D™ 8536SDA1V81AFF4G11T Type S Magnetic Starter, 480/120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Non-Reversing
Amperage Rating:
45 A
Coil Voltage:
480/120 VAC at 60 Hz
Connection Type:
Screw Clamp
Control Type:
Pushbutton (START/STOP)
Dimensions:
14.88 in W x 8.15 in D x 15.98 in H
Enclosure Type:
NEMA 12
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
7.5 kW at 200 VAC/11 kW at 230 VAC/18.5 kW at 460 VAC/18.5 kW at 575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
