Schneider Electric 8536SCW13V07

Schneider Electric 8536SCW13V07 by Square D by Schneider Electric

$
1,064
07
/ EA / 1 EA
  • Part Number: 8536SCW13V07
  • UPC: 00785901899761
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

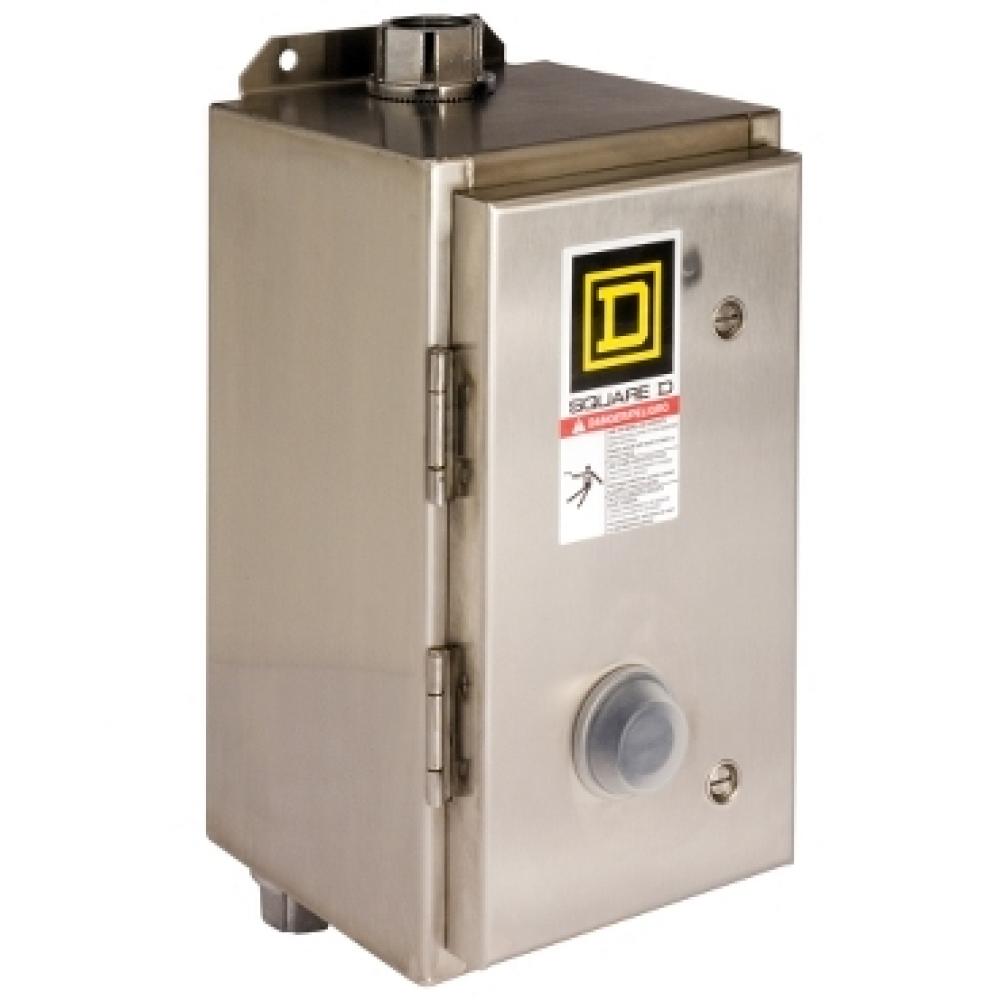

Square D™ 8536SCW13V07 Type S Magnetic Starter, 550 VAC at 50 Hz/600 VAC at 60 Hz V Coil, 3 Poles, NEMA 4/4X Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Amperage Rating:
27 A
Coil Voltage:
550 VAC at 50 Hz/600 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
6.38 in W x 7.8 in D x 13.19 in H
Enclosure Type:
NEMA 4/4X
Frequency Rating:
50/60 Hz
Material:
Stainless Steel
Motor Power:
3 hp at 115 VAC/5 hp at 230 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
