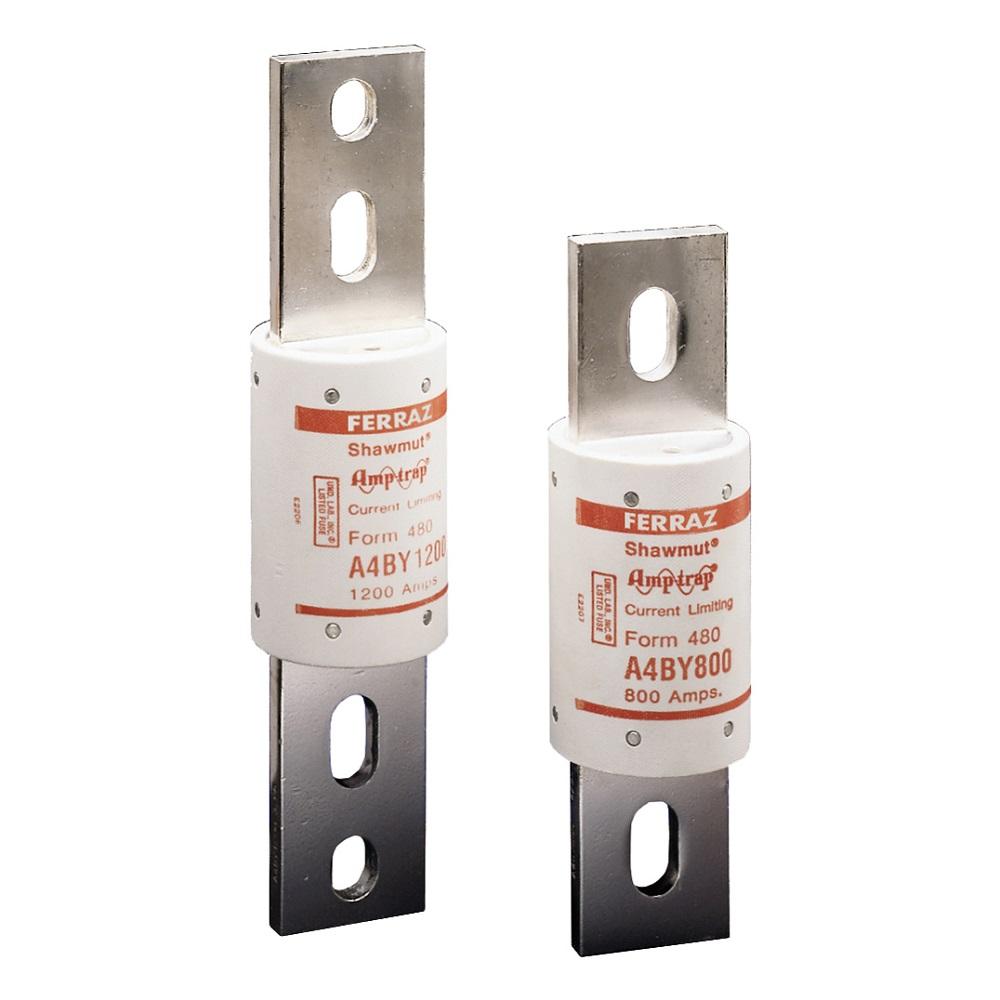

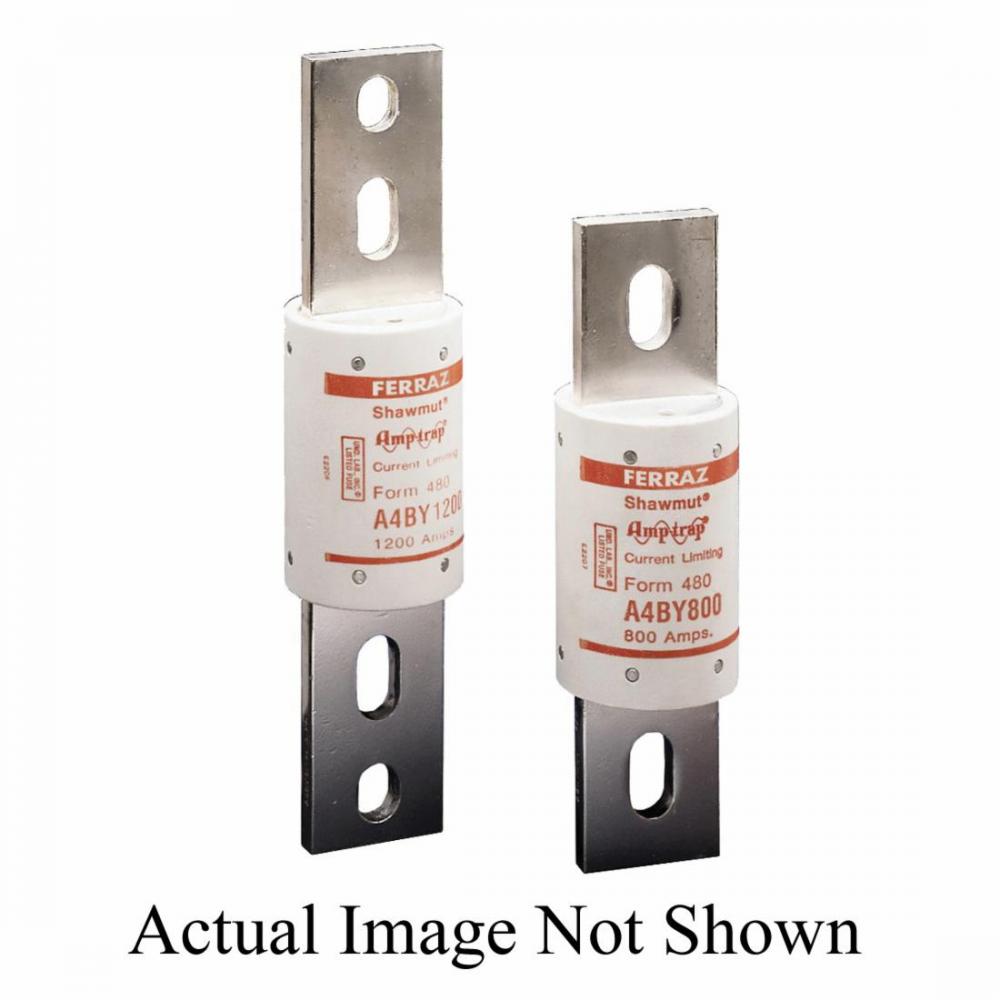

Ferraz Shawmut AMP-TRAP® A4BY1600-TI Low Voltage North American Style Time Delay Power Fuse With TI Indicator, 1600 A, 600 VAC/300 VDC, 100/200 kA, Class L, Cylindrical Body

Specifications

Details

Category Level 1:

Fuses, Blocks & Holders

Category Level 2:

Fuses Electrical UL Class Standard

Category Level 3:

Class L Fuses

Amperage Rating:

1600

1600 A

Application:

Mains, Feeders, Circuit Breakers, Load centers, Panelboards, Switchboards and Metering Centers

Body Size:

2.88 in Dia x 10.75 in L

Body Type:

Cylindrical

Category Name:

Class L Fuses

Class:

Country:

USA/Canada

Indicating/Non-Indicating:

Indicating

Interrupt Rating:

100/200

100/200 kA

Length:

11.0

Material:

GMG

Mounting Type:

Bolt-On

Rejection/Non-Rejection:

Rejection

Series:

A4BY

Standard/Approvals:

RoHS Compliant|UL 248-10 Guide JDDZ File No. E2137|CSA C22.2 File No. 248.10, Class 1422-02 File No. 012636_0_000|IEC 269-2-1|DC Listed

Terminal Type:

Blade

Type:

Low Voltage North American Style Time Delay

Unspsc:

39121606

Voltage Rating:

600 VAC/300 VDC

Volume:

0.0

Weight:

7.0

Additional Information

Manufactured By:

MERSEN
