Leviton 47941R

Leviton 47941R by Leviton

$
32
12
/ EA / 1 EA
  • Part Number: 4794-1R
  • UPC: 00078477943793
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

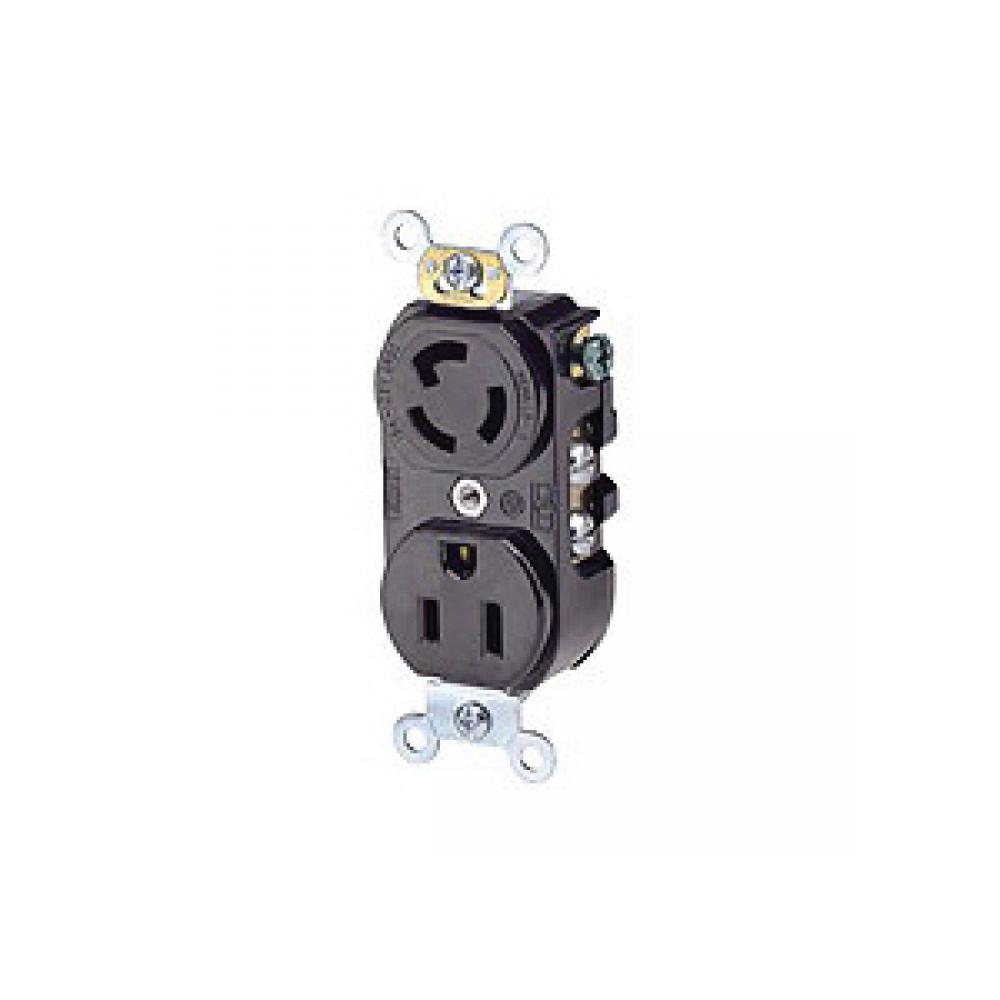

Leviton® 4794-1R Duplex Grounding Locking Straight Blade Receptacle Outlet, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Combination Devices
Category Level 3:
Receptacles & Receptacles
Amperage Rating:
15
15 A
Application:
Industrial Applications
Category Name:
Receptacles & Receptacles
Color:
Black
Country:
USA
Environmental Conditions:
-40 to 60 deg C Operating Temperature
Grade:
Industrial
Horsepower:
1/2
1/2 hp
Length:
12.0
Material:
Thermoplastic
Mounting:
Surface
NEMA Rating:
NEMA L5-15R
Number of Poles:
2
Number of Wires:
3
Size:
46 in H x 1.44 in W x 0.97 in D
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. LR406/CSA C22.2 No. 42 File No. LR406/152105|UL Federal Specification WC596 File No. E13399/E13393|UL 498|UL94 V-2 Flammability Rating
Type:
Duplex Grounding Locking
Unspsc:
39121406
Voltage Rating:
125
125 VAC
Volume:
16.0
Weight:
13.0
Wire Size:
18 to 10
18 to 10 AWG
Wiring Method:
Back and Side Wired
Back/Side Wired
Additional Information
Manufactured By:
Leviton
