Product Overview

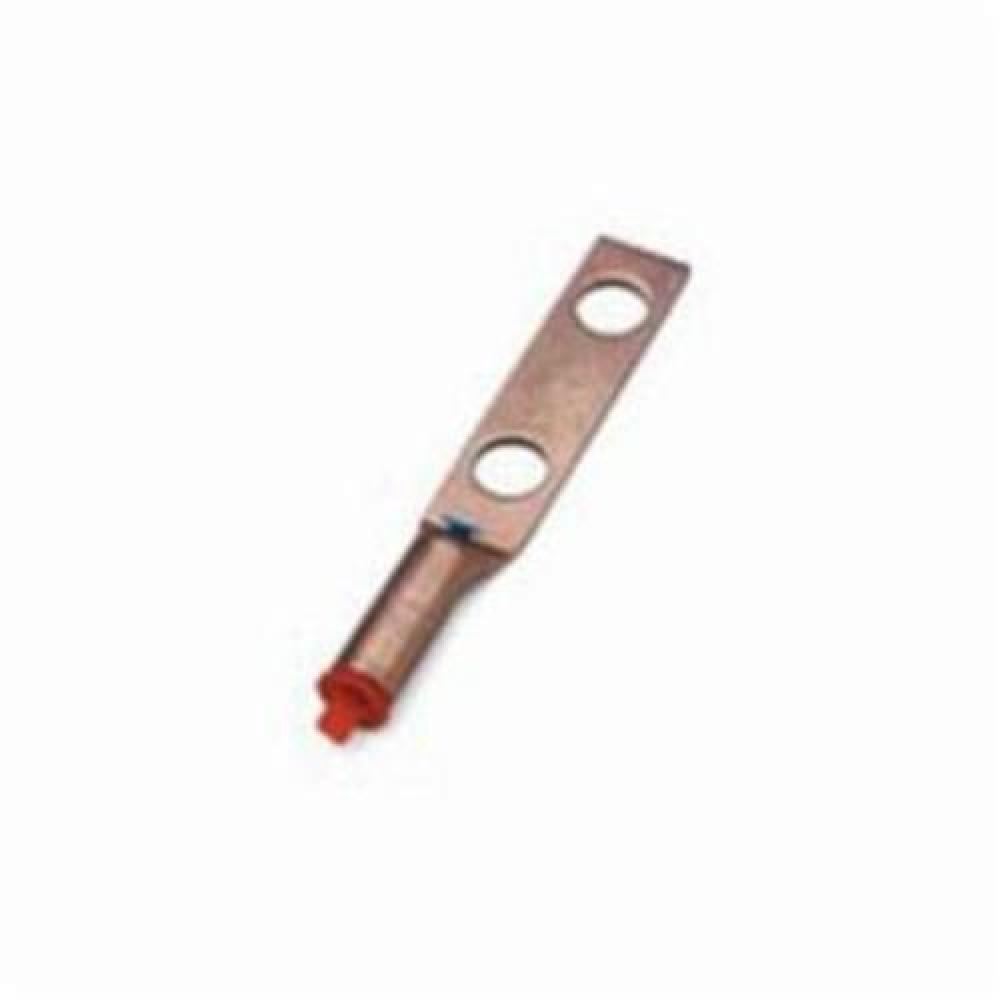

BURNDY® HYLUG YGA2C2TC38 2-Hole Grounding Irreversible Compression Lug, 2 AWG Solid/Stranded Copper Conductor, Die Code: 10, 3/8 in Stud, Copper
Specifications
Details
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For direct burial in earth or concrete, grounding applications
Category Name:
Lug Compression Connectors
Specifications:

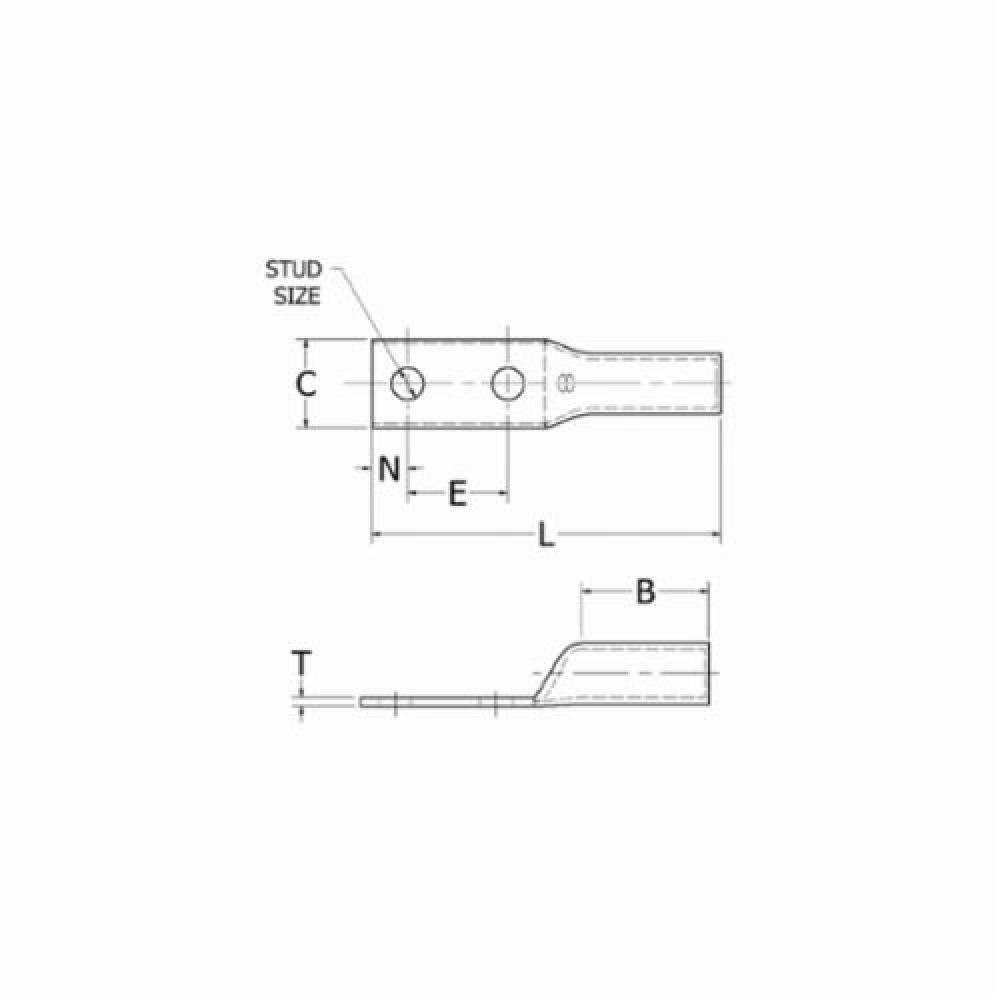

1 in L Wire Strip, 1-3/4 in Hole Spacing
1 in L Wire Stripe, 1-3/4 in Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act/RoHS Compliant|UL 468A/468B/467|IEEE 837 Standard|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects
Type:
2-Hole Grounding Irreversible
