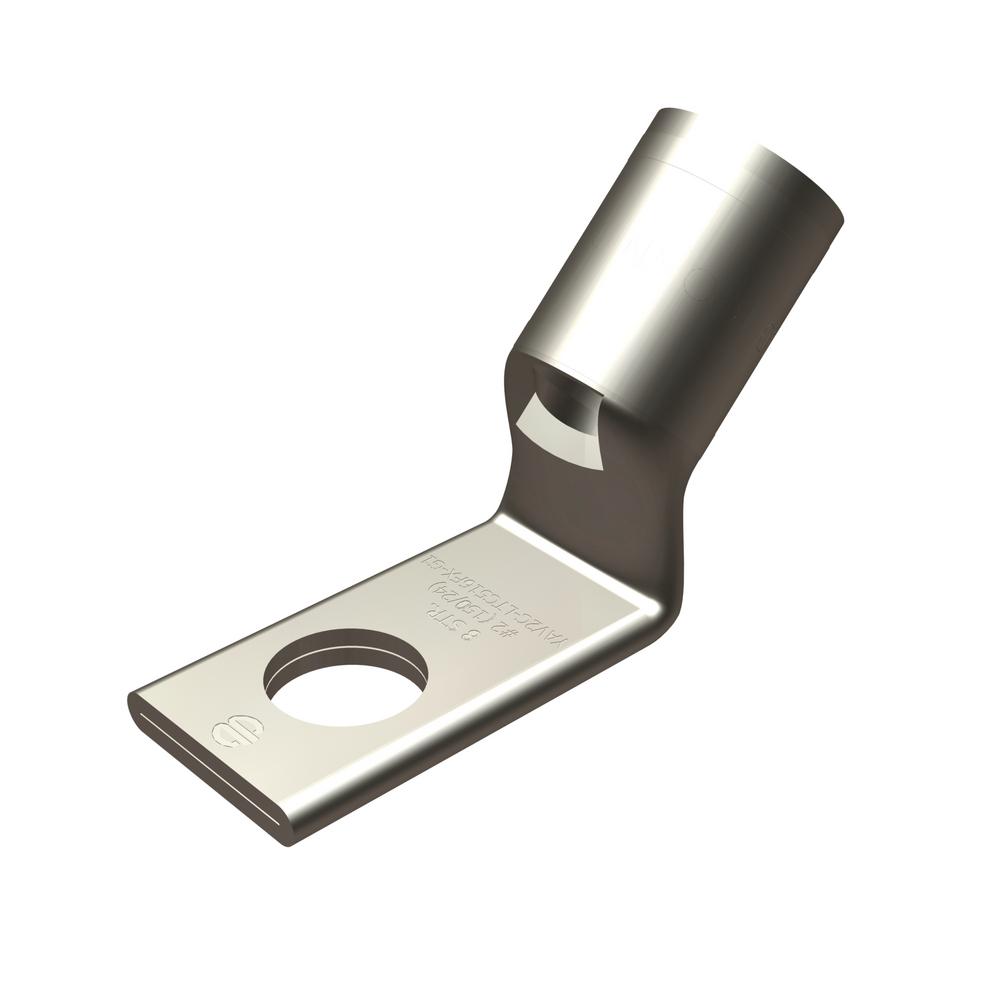

BURNDY® HYLUG YAV2CLTC38FX45 YAV-L-FX 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, 3/8 in Stud, Copper

Specifications

Details

Category Level 1:

Wiring Connectors

Category Level 2:

Compression Connectors & Lugs

Category Level 3:

Lug Compression Connectors

Barrel Size:

0.63 in L

Barrel Type:

Chamfered/Standard

Category Name:

Lug Compression Connectors

Color:

Brown

Conductor Size:

2 AWG

Conductor Type:

Stranded Copper

Country:

USA

Die Code:

Length:

2.0

Material:

Copper

Electro-Tin Plated Copper

Mounting Hole Size:

3/8

3/8 in

Overall Length:

1.77

1.77 in

Series:

YAV-L-FX

Specifications:

11/16 in L Wire Strip

11/16 in L Wire Stripe

Standard/Approvals:

ARRA Compliant|Buy American Act and RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductiv

Stud Size:

3/8

3/8 in

Temperature Rating:

90 deg C

Tongue Size:

0.68 in W x 0.1 in THK

Tongue Type:

45 deg Standard

Type:

1-Hole

Unspsc:

39121408

Voltage Rating:

600 VAC to 35 kV

Volume:

0.0

Weight:

0.0

Additional Information

Manufactured By:

Hubbell
