Hubbell YA342TC38

Hubbell YA342TC38 by Hubbell

$
42
92
/ EA / 1 EA
  • Part Number: YA342TC38
  • UPC: 00781810821237
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

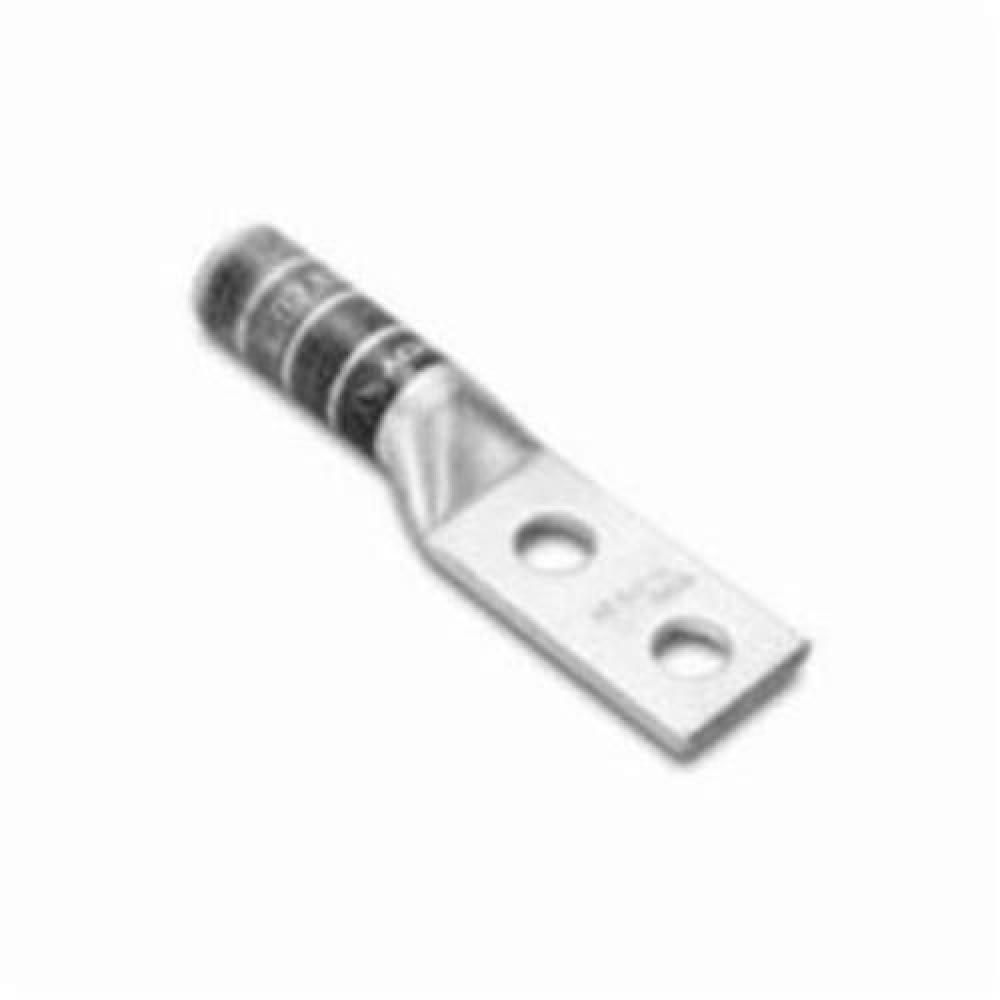

BURNDY® HYLUG YA342TC38 YA-2TC 2-Hole Compression Lug, 500 kcmil Stranded Copper Conductor, Die Code: 20/299, 3/8 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For code conductor
Barrel Size:
1.06 in OD x 2.25 in L
Barrel Type:
Chamfered/Long
Category Name:
Lug Compression Connectors
Color:
Brown
Conductor Size:
500
500 kcmil
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
20/299
Length:
8.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
4.9
4.9 in
Series:
YA-2TC
Specifications:
2-5/16 in L Wire Strip, 1 in Hole Spacing
2-5/16 in L Wire Stripe, 1 in Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
3/8
3/8 in
Temperature Rating:
90
90 deg C
Tongue Size:
1.55 in W x 0.23 in THK
Tongue Type:
Standard Straight
Standard/Straight
Type:
2-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
Hubbell
