Hubbell USB15X2W

Hubbell USB15X2W by Hubbell

$
37
23
/ EA / 1 EA
  • Part Number: USB15X2W
  • UPC: 00883778304606
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

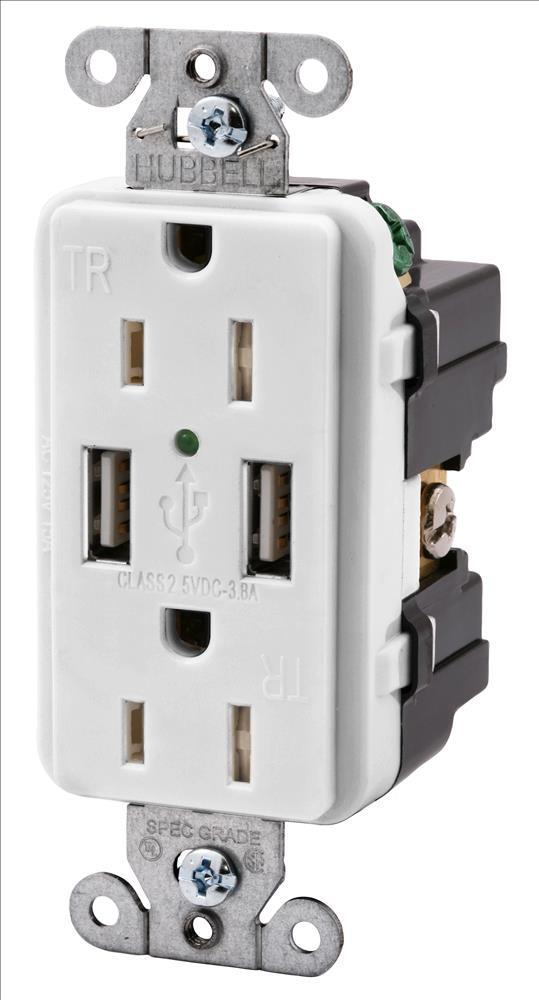

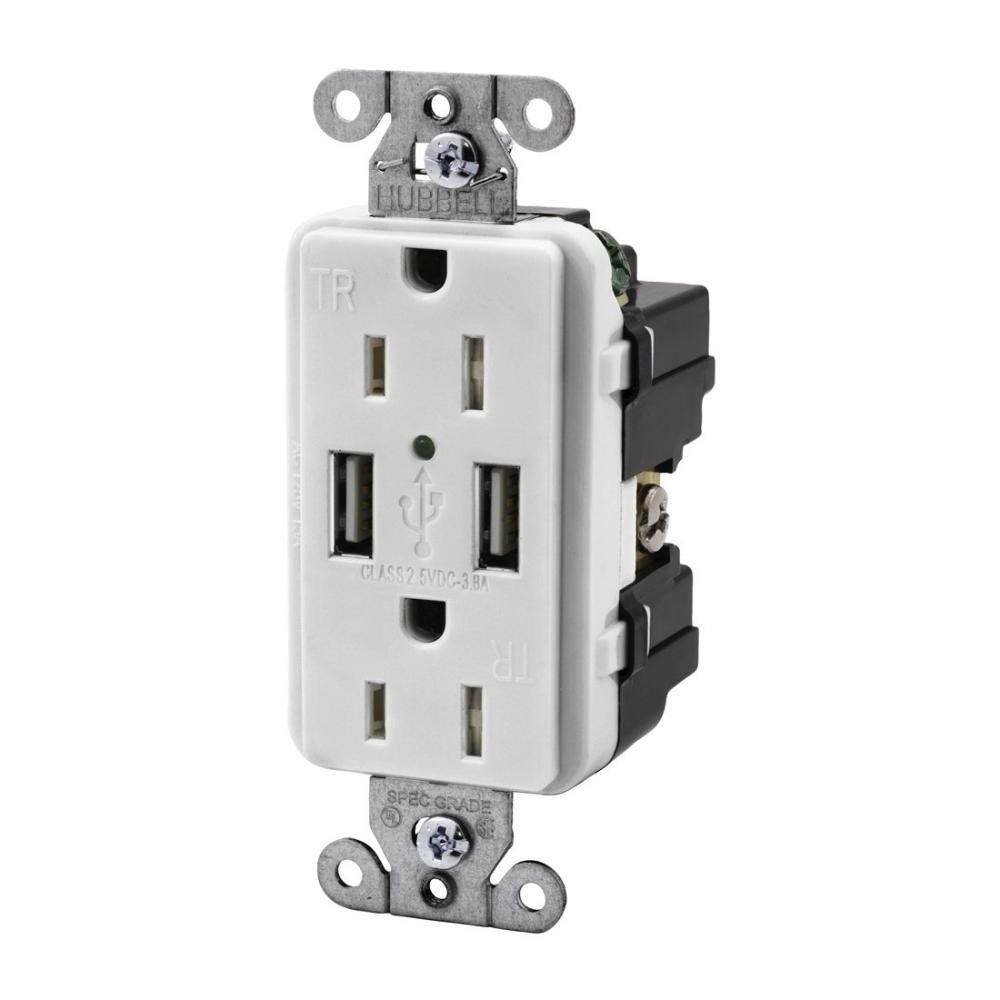

Wiring Device-Kellems USB15X2W Decorator Duplex Straight Blade Tamper-Resistant Receptacle and USB Charger, 125 VAC, 15 A, 1/2 hp, 1 Phase, 2 Poles, 3 Wires, White
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Combination Devices
Category Level 3:
Receptacles & USB Ports
Application:
Tablets, Smartphones, MP3 Players, Apple® iPad®, Apple® iPod® and Apple® iPhone
Category Name:
Receptacles & USB Ports
Color:
White
Connection:
Back/Side Wired Screw
Back/Side Wired/Screw
Screw Terminal
Country:
USA
Electrical Ratings:
125 VAC, 15 A, 1/2 hp
125 VAC, 15 A, 1875 W
Environmental Conditions:
-40 to 75 deg C Operating Temperature
NEMA 5-15R, -40 to 75 deg C Operating Temperature
Grade:
Commercial/Specification
Insulation:
Class 2.0
Length:
0.0
Material:
Composite/Thermoplastic
RTP
Mounting:
Flush/Threaded
Threaded
Number of Poles:
2
Number of Wires:
3
Phase:
1
1 ph
Size:
4.12 in H x 1.96 in D
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498/1310|CSA Certified|UL94 V-2 Flammability Rating|FCC Part 15
Type:
Decorator Duplex Standard Straight Blade Tamper Resistant
Decorator Duplex Straight Blade Tamper-Resistant
Unspsc:
39121406
USB Quantity:
2
USB Rating:
3 A at 5 VDC
5 VDC, 3 A
USB Type:
Type A
Type A/USB 2.0
Volume:
0.0
Weight:
0.0
Wire Size:
14 to 10
14 to 10 AWG
14 to 12
Wiring Method:
Back and Side Wired Self-Grounding
Grounding
Additional Information
Manufactured By:
Hubbell
