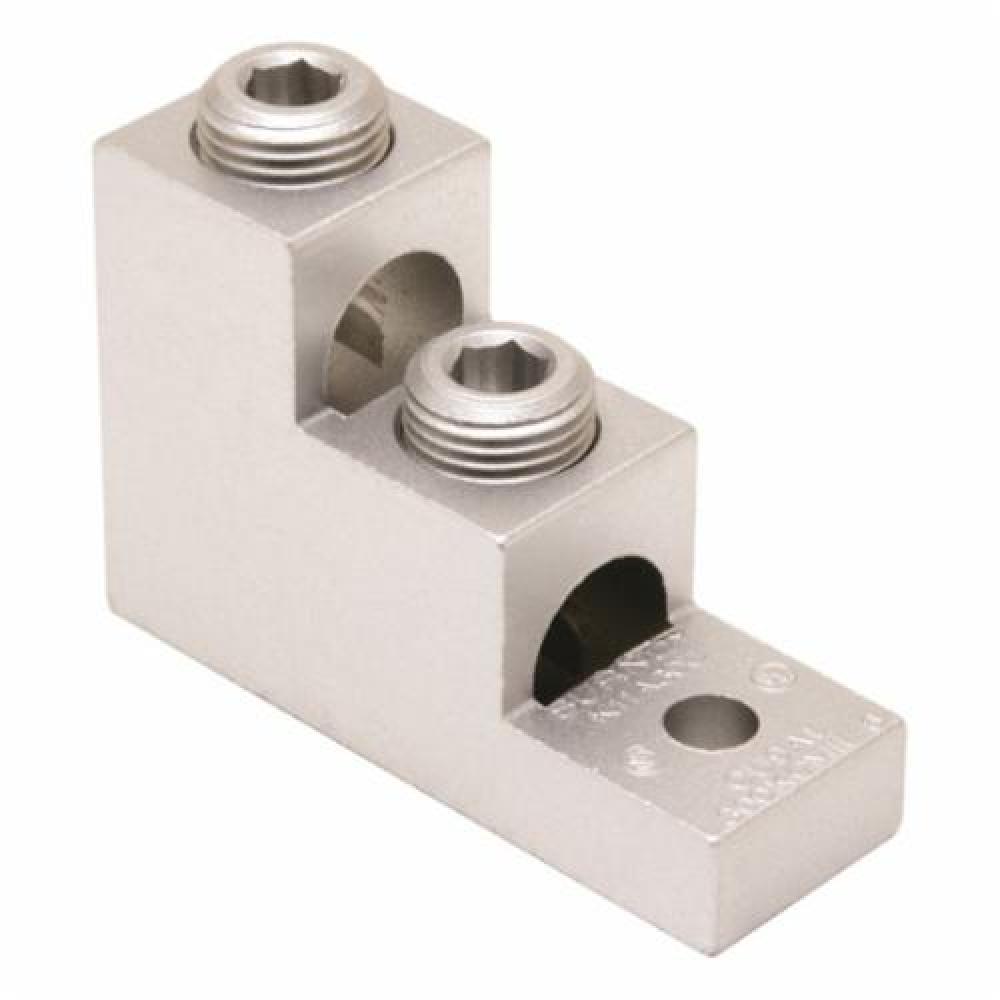

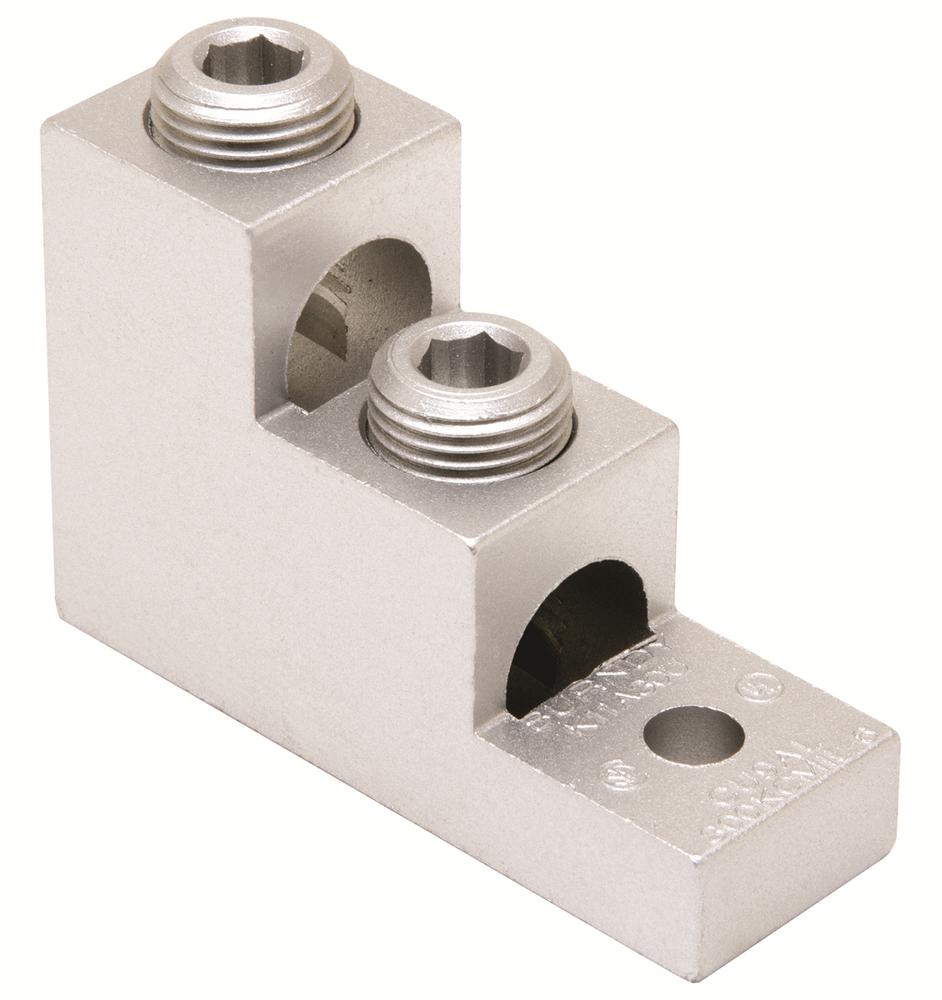

BURNDY® K11A30U K11A-U Dual Rated Universal Terminal Lug, 6 AWG to 300 kcmil Aluminum/Stranded Copper Conductor, 5/16 in Stud, 2 Bolt Holes, Aluminum Alloy

Specifications

Details

Category Level 1:

Wiring Connectors

Category Level 2:

Mechanical Connectors & Lugs

Category Level 3:

Mechanical Terminal Lugs

Application:

For aluminum and copper conductors

Category Name:

Mechanical Terminal Lugs

Conductor Size:

6 AWG to 300 kcmil

Conductor Type:

Aluminum/Stranded Copper

Country:

USA

Dimensions:

3 in L x 2.03 in H

Finish:

Electro-Plated Zinc

Electro-Zinc Plated

Length:

3.0

Material:

Aluminum Alloy

Number of Bolt Holes:

Series:

K11A-U

Specifications:

(2) Hex Screw, 275 in-lb Installation Torque

Hex Screw 275 in-lb Installation Torque

Standard/Approvals:

ARRA Compliant|Buy American Act and RoHS Compliant|AL9CU Rated|CSA Certified|UL 468A-468B|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or ot

Stud Size:

5/16

5/16 in

Temperature Rating:

194 deg F

Tongue Size:

1 in W x 0.5 in THK

1 in W x 1/2 in THK

Tongue Type:

Straight

Type:

Dual Rated

Unspsc:

39121408

Volume:

0.0

Weight:

1.0

Additional Information

Manufactured By:

Hubbell
