Hubbell HBL5292

Hubbell HBL5292 by Hubbell

$
30
61
/ EA / 1 EA
  • Part Number: HBL5292
  • UPC: 00783585435404
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Wiring Device-Kellems HBL5292 2-Circuit Grounding Heavy Duty Standard Straight Blade Combination Duplex Receptacle, 125/250 VAC, 15 A, 2 Poles, 3 Wires, Black
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Combination Devices
Category Level 3:
Receptacles & Receptacles
Amperage Rating:
15
15 A
Application:
Indoor Dry Environment
Category Name:
Receptacles & Receptacles
Color:
Black
Connection:
Screw
Country:
USA
Environmental Conditions:
-40 to 75 deg C Operating Temperature
Grade:
Commercial/Industrial
Horsepower:
1-1/2
1-1/2 hp
Length:
9.0
Material:
Thermoplastic/Composite
Mounting:
Threaded
NEMA Rating:
NEMA 5-15R/6-15R
Number of Poles:
2
Number of Wires:
3
Phase:
1

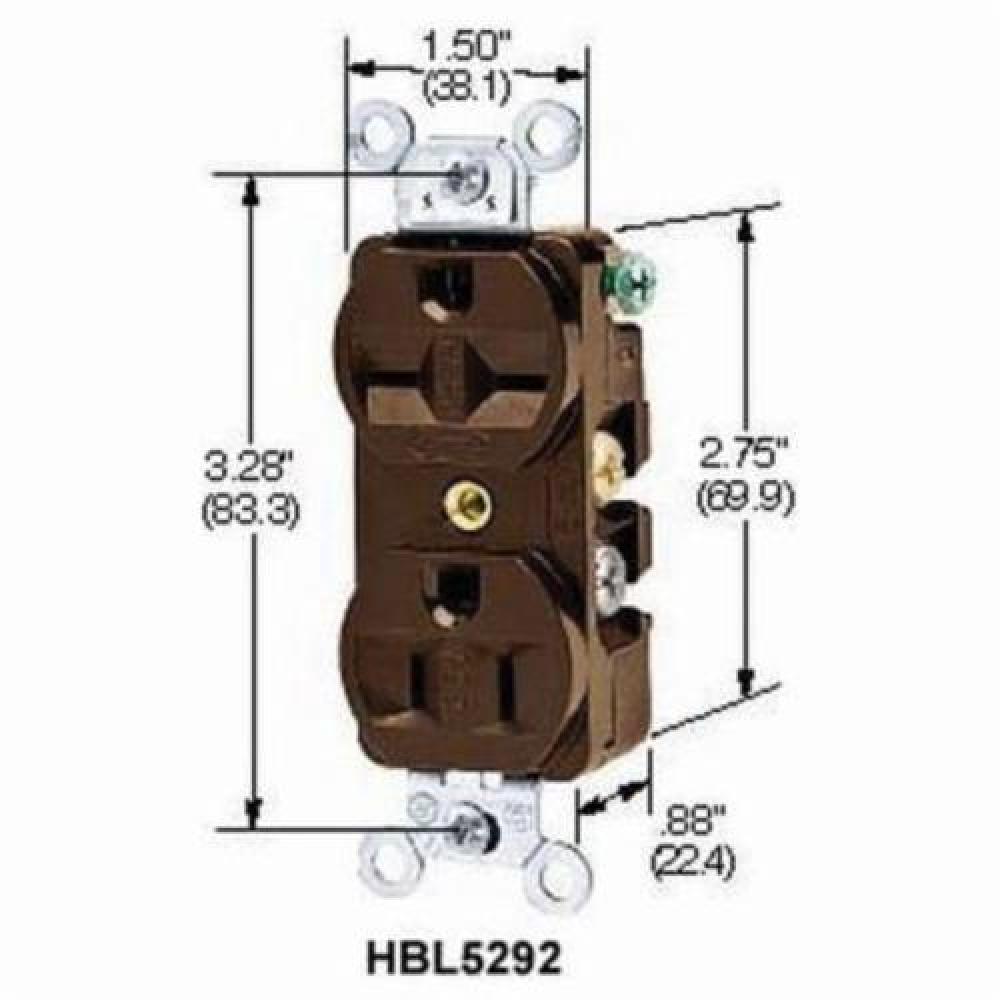

Size:
3.28 in H x 1.5 in W x 0.88 in D
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, NEMA WD1, WD5, UL 498 File No. E2186, CSA, C22.2 No. 42 File 285
Type:
2-Circuit Grounding Heavy Duty Standard Straight Blade
Unspsc:
39121406
Voltage Rating:
125/250
125/250 VAC
Volume:
0.0
Wattage:
3750
3750 W
Weight:
2.0
Wire Size:
14 to 12
14 to 12 AWG
Wiring Method:
Back and Side Wired
Back/Side Wired
Additional Information
Manufactured By:
Hubbell
