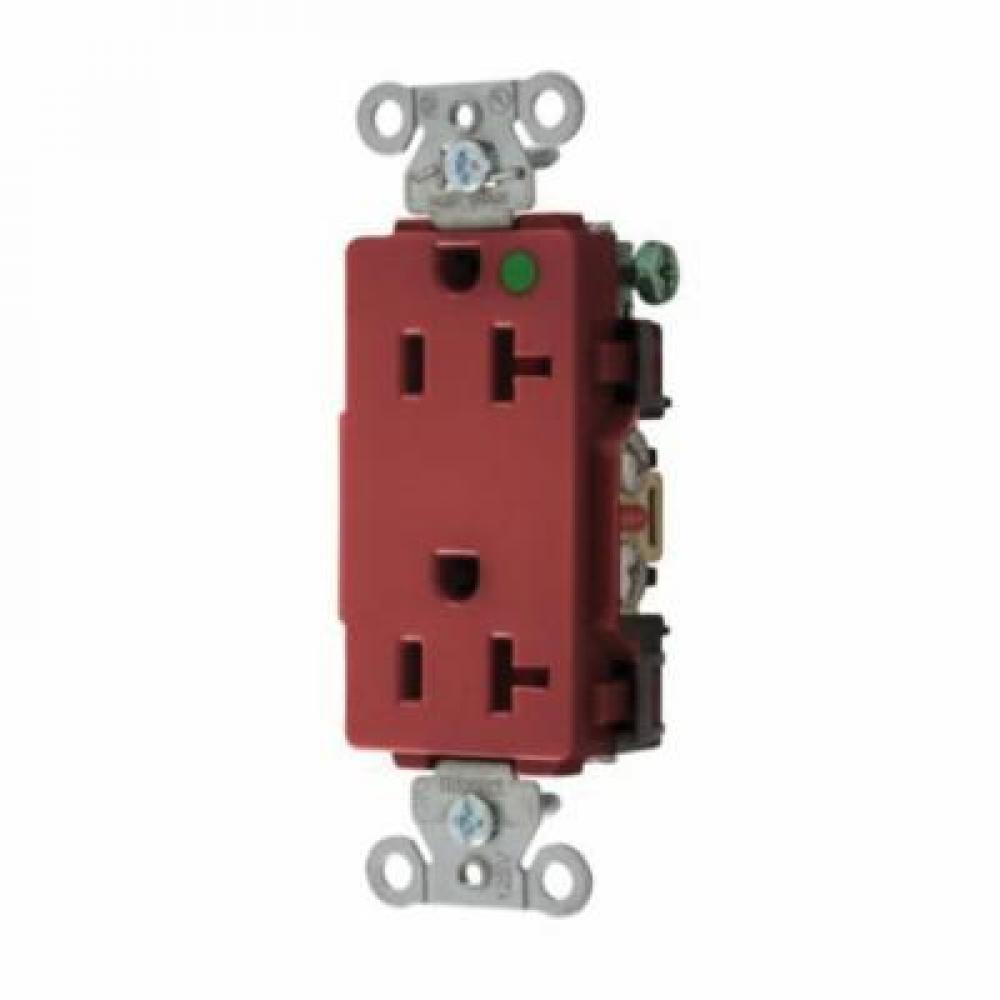

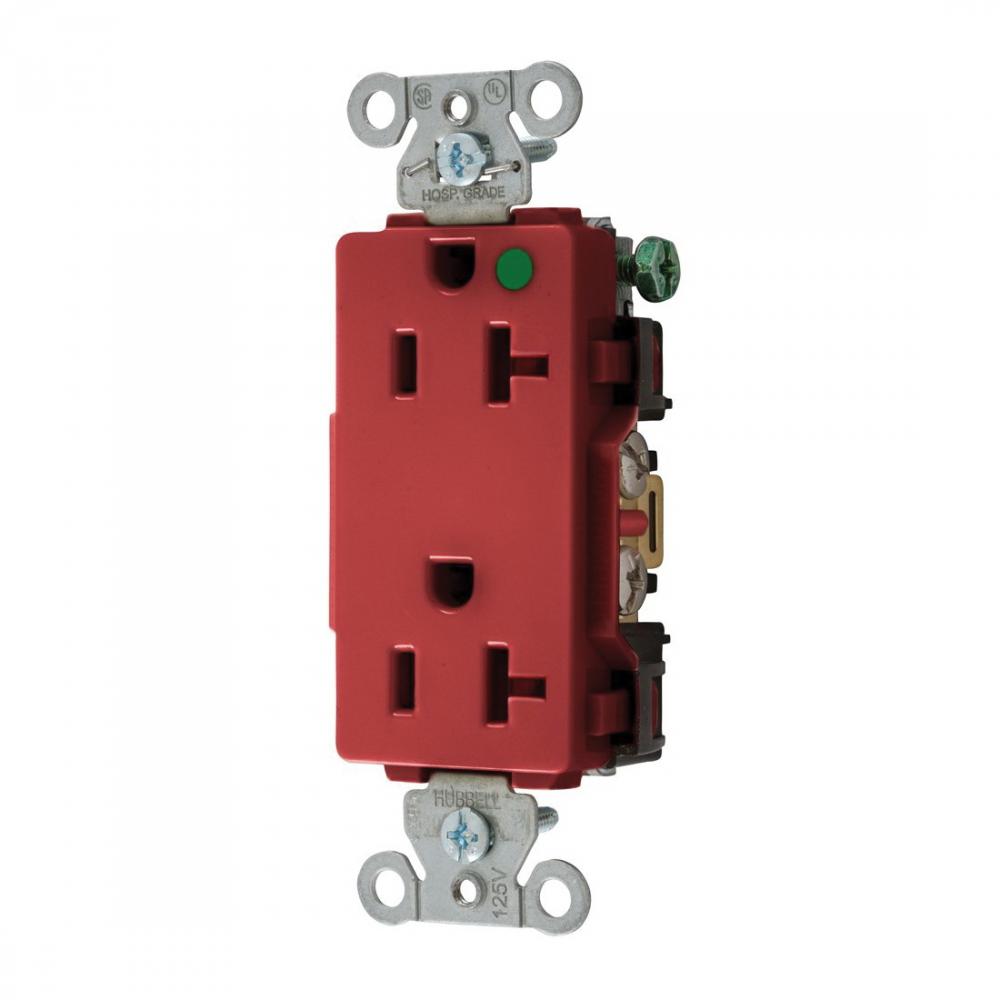

Hubbell 2182RED

Hubbell 2182RED by Hubbell

$
28
29
/ 1
  • Part Number: 2182RED
  • UPC: 00783585196640
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Hubbell® Line® 2182RED Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Combination Devices
Straight Blade Devices
Category Level 3:
Receptacles & Receptacles
Straight Blade Receptacles
Amperage Rating:
20
20 A
Application:
Indoor Applications
Category Name:
Straight Blade Receptacles
Color:
Red
Connection:
Threaded
Country:
USA
Dimensions:
3.28 in H x 1.57 in W x 1.15 in D
Environmental Conditions:
UL 94V-2 Flammability
Grade:
Hospital
Horsepower:
1
1 hp
Length:
10.0
Material:
Nylon
Mounting:
Flush
NEMA Rating:
NEMA 5-20R
Number of Poles:
2
Number of Wires:
3
Phase:
1
Standard/Approvals:
ARRA, Buy American Act Compliant, CSA Certified, Federal Specification WC596, NEMA WD1, WD5 WD6, UL 498
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back and Side Wired/Screw
Back/Side Wired Screw
Type:
Decorator Duplex Heavy Duty Standard
Duplex
Unspsc:
39121406
Voltage Rating:
125
125 VAC
Volume:
0.0
Wattage:
2500
Weight:
2.0
Wire Size:
12 to 10 AWG
Wiring Method:
Back/Side Wired
Additional Information
Manufactured By:
Hubbell
